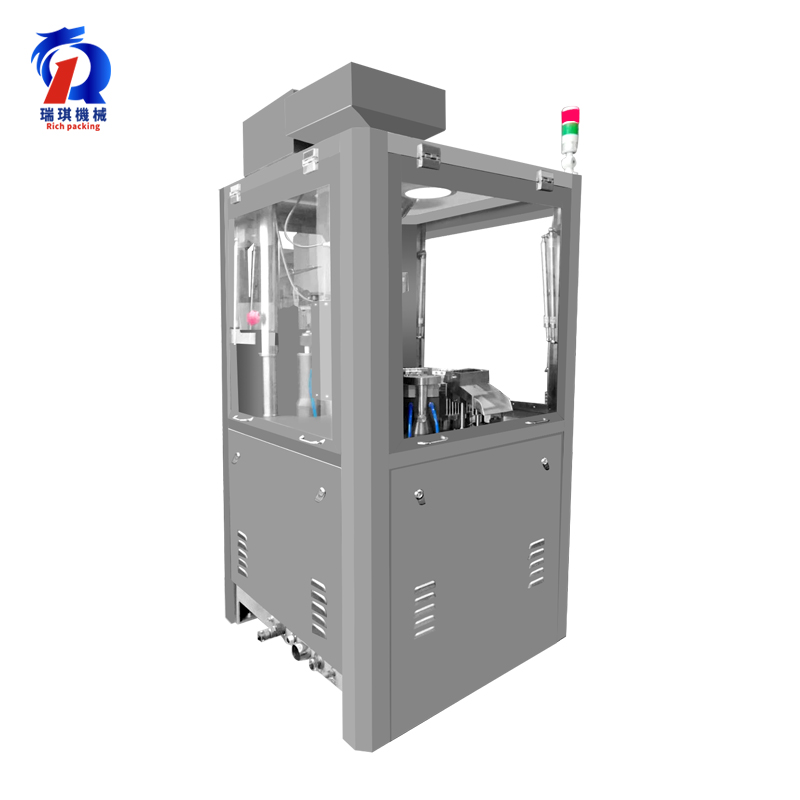

72000 Capsules per Hour Automatic Capsule Pharmaceutical Filling Machine
| Production capacity | 72000 pcs/h |
| Net weight of machine | 1100Kg |
| Overall size of machine | 900×870×1950 |
| Power | 380/220V 50Hz |
| Total power | 5.5KW |
| No.of segment bores | 9 |
| Vacuum | 40m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
| Weight | 1100Kg |
| Packing size | 1490×1260×2150mm |
1.The capsule filling machine is the third generation of innovative products of pharmacy machinery.
2.Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).
3.Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China.
4.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
5.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.
6.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
7.The control of capsule filler machine appliance adopts the world famous brand, modularized setup, convenient inspection and maintenance, SIEMENS human machine interface, real-time counting, and can print the equipment according to customer needs, print production date, batch number, code, etc.
8.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute.
9.The capsule filling equipment is small in volume, low in energy consumption, convenient in cleaning and stable in operation. The capsule filling machine is suitable for continuous production of 24 hours.
10.This pharmaceutiacl automatic capsule filling meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
