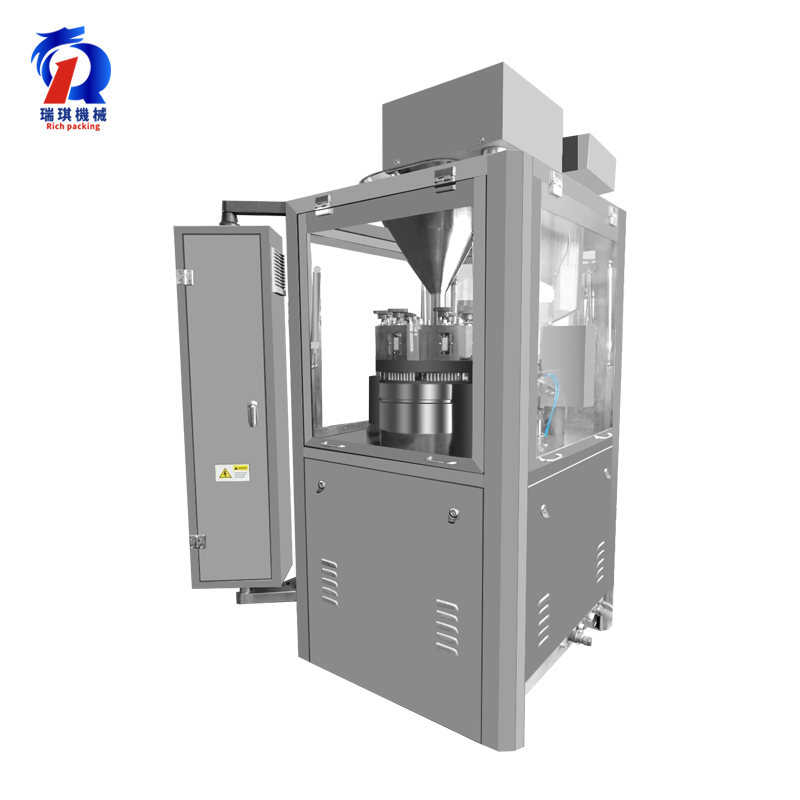

NJP 1200 High Speed Automatic Capsule Filler Equipment Pharmacy Machines
| Production capacity | 72000 pcs/h |
| Net weight of machine | 1100Kg |
| Overall size of machine | 900×870×1950 |
| Power | 380/220V 50Hz |
| Total power | 5.5KW |
| No.of segment bores | 9 |
| Vacuum | 40m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
| Weight | 1100Kg |
| Packing size | 1490×1260×2150mm |
1.This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.
2.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
3.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution
4.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.
5.Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China.
Features:
100DS Cam: The diameter of force input shaft is 30CM , the diameter of force output shaft is 40CM.
The utility model has the advantages of good stability, button and torque of the large and long service life, completely changed the previous 83DS frequent failure, even into the power output shaft axis and fault phenomenon.
6.This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.
7.Guangdong Rich Packing Machinery Co. Ltd.'s capsule filler machine deploy segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision,
the error is less than or equal to 3%.
8.The capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.
9. Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.
10.One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished
