160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

Product Categories
Guangdong Rich Packing Machinery Co., Ltd.
Contact Now

160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

Brand Name : Rich Packing

Model Number : DPP-160r

Certification : CE/ISO 9001/SGS

Place of Origin : Guangzhou, China

MOQ : 1 pcs

Price : $14008-$14700 per pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 50 pcs/month

Delivery Time : 5-8 working days

Packaging Details : Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.

Production Capacity : 4200 pellets per hour

Max. Shaping Dia. And Depth : 130*100*15mm Max. Depth 26mm（custom-made）

Blanking : 20～50 times/min

Total Power : 3.78kW

Standard Plate : 80*57mm

Standard Travel Range : 40～110mm

Noise : <75dBA

product : DPP-160 Plate tablet capsule pill Automatic Blister Packing Machine

Voltage : 380V/220V 50Hz

Warranty : 24 Months

Contact Now

Blanking times

20～50 Times / min

Air pressure

≥ 0.11 m3/min

PVC thickness / width

140 × 0.25 ～ 0.5mm

Thickness / width of PTP aluminum foil

140 × 0.02 ～ 0.03mm

Dialysis paper

50-100g * 150 mm

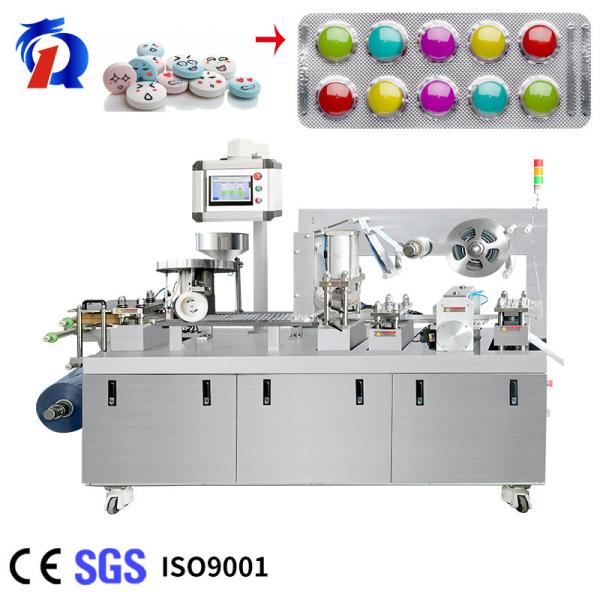

As a brand-new aluminum-plastic blister packaging machine developed by our company, dpp-160 is controlled by PLC, which can automatically package tablets, capsules, candy and other materials. At the same time, dpp-160 has a series of functions such as feeding and sealing.

In order to make the machine more stable, we use the column to fix the cams in each position of the machine. At the same time, we use the floor type box seat for the cams in the four positions of molding, heat sealing, indentation and blanking, which makes the center of gravity of the machine more stable and the adjustment more convenient. Under the action of the new helical gear motor, the operation of the machine is more stable.

When PVC, PTP fault shutdown occurs, the machine will automatically alarm, which can reduce the consumption of raw materials and improve the utilization rate of materials. The machine adopts a large platform design and is equipped with a waste recovery device, which is convenient for cleaning and maintenance after use and keeps the workshop clean and tidy.

160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

pvc ps pet wide range of materials

160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing160r 20～50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

pill blister packing machine mini blister packing machine tablet blister packing machine price
